Weis Engineering Ltd is one of the leading solar water pumping companies in Uganda that offers solar water pumping solutions for irrigation, livestock, industrial and home use. We import solar equipment including solar water pumps, solar panels, solar controllers to mention.

Solar water pumps and solar panels of different capacities are available.

We do solar water pumping systems designs, installations, repairs, and maintenance.

Water pumping systems are sized to your needs according to water source type (Surface or underground(depth)), required production(volume of water required per unit time for example per day), application, and estimated daily hours of sunlight. Our systems feature solar surface pumps or solar submersible pumps that can be installed in well casings as small as 3 inches

Solar water pumps are a cost-effective and depe

ndable method for providing water in situations where water resources are spread over long distances; power lines are few or non-existent, or fuel and maintenance costs are considerable.

They are designed to accept DC power directly from the solar modules and are optimized for operating under less-than-ideal sun conditions. Where conventional AC-powered pumps require a stable voltage and frequency to operate, solar pumps can operate over a wide range of voltage and available current.

Conventional AC-powered pumps require large amounts of power to move large volumes of water in a short period of time. Solar pumps typically move a smaller volume of water over an extended period of time. This method requires far less power, which minimizes the size and cost of the PV array.

Solar water pumping

Solar Pumps can be used to pump water for drinking for both Livestock and human, reliably wherever it is needed, cooking and sanitation in and around a home. Gardens can be irrigated without the need for grid power or cost of running generators and swimming pools can be kept clean in a cost-effective and sustainable way.

Solar water pumping company

Weis Engineering Ltd is a solar water pumping company in Uganda, below are some of few selected solar-powered water pumping installed systems

1. Solar powered lighting and pumping in Mukono

Solar powered submersible water pumping and lighting system with possibility of pumping at night

Water source type	Hand dug
Pump type	Direct current(DC), submersible pump 24 volts
Lighting system	6 bulbs, two charging ports
Batteries	Two batteries of 12 Volts each
Solar panels	Two panels of 260 watts each

Selected photos

Solar pumping and lighting system in Uganda

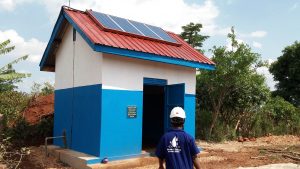

Solar panels for solar lighting in Uganda

Short solar lighting system demo video

2. Hybrid (AC – 3 Phase, and DC) powered pumping in Kabale

Hybrid submersible water pumping with possibility of solar panel connection

Water source type	Machine drilled
Pump type	Hybrid (3 phase AC and DC-Solar)
Installation depth	105 meters
Solar panels	To be connected at a later stage

Selected photos

Installing a submersible hybrid water pump

Concrete reinforced water tank in Uganda

Hybrid pump controller installation in Uganda

Demo Video

2. Automated Hybrid solar powered pumping in Ibanda

Hybrid solar powered submersible water pumping for irrigation, and domestic use

Water source type	Machine drilled water borehole
Pump type	Hybrid (AC and DC-Solar)
Installation depth	50 meters
Water usage	Irrigation, domestic and small community
Solar panels	Six panels of 330 watts

Selected photos

Metallic tank tower for water for community in Uganda

Hybrid pump installation in Ibanda Uganda

2. Automated solar powered pumping in Busia

Solar powered submersible water pumping

Water source type	Machine drilled water borehole
Pump type	Solar
Installation depth	18 meters
Water usage	Domestic and community
Solar panels	One panel of 330 watts

Selected photos

Demo Video

2. Hybrid solar powered pumping in Kikyusa

Hybrid solar powered surface water pumping for irrigation water supply

Water source type	Manually excavated valley tank
Pump type	Solar
Installation depth	Surface
Water usage	Irrigation
Solar panels	Three panels of 330 watts

Selected photos

Solar panel installation for drip irrigation

Solar panel installation for solar powered water pumping

Solar powered drip irrigation system installation for coffee

coffee under solar powered irrigation in Uganda

Demo Video

3. Automated solar powered pumping in Sheema with Hybrid option

Solar powered submersible water pumping

Water source type	Machine drilled water borehole
Pump type	Hybrid (ACand DC)
Installation depth	130 meters
Water usage	Village, school, and church
Solar panels	Three panels of 495 watts each

Selected photos

Solar panels for solar powered water systems

Installation of a submersible solar powered pump 1

Short demo videos

3. Solar powered fixed sprinkler irrigation system

Water source 1	Drilled water borehole
Water source 2	Plastic water tanks
Water pump type 1	DC(Solar) submersible pump
Water pump type 2	AC surface booster pump
Number of solar panels connected – pump 1	four(4) – 1,200watts
Number of solar panels connected – pump 2	Eighteen(18) – 5,400watts
Capacity of each panel – pump 1 & 2	300 watts
